- Place of Origin:Hebei China (Mainland)
- Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
- Price:US $60 – 120 / Piece
- Price Valid Time:7 days
- Company Certificate:ISO 9001：2008,CE,SGS
- Quality Inspection:ISO 9001：2008,CE,SGS
- HS Code:7314490000
- Brand Name:DeChengli
- Type:Wire Mesh Fence
- Material:high quality mild steel wire or hot dipped galvnaized iron wire.
- Means of Transport:by sea
- Delivery Date:within 20 days
- Specification:Expanded size:5000X1500mm,Folded size: 400X1800(H)mm
- Applications:Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts
- Packaging Detail:we can packed it in 25kg/roll,or as your requirements
- Delivery Detail:within 30 days after formal order
Materials: chiefly expanded steel mesh, aluminum expanded metal mesh, expanded stainless steel, expanded nickel and other metal , as steel reinforcement materials in petroleum, chemical industry and building decorations.
Surface treatment: PVC coated, Galvanized, Epoxy resin,anodic oxidation, antirust paint.

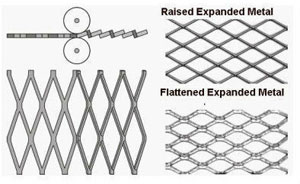

Weaving and characters: Made up by Stamping and stretching the metal sheet, elegant appearance, sturdiness and durability.
Features:
1. Effectively barricade-off doorways.
2. Hinges out of sight and disappears. Easy to assemble and use.
3. Eco-friendly powder coated, steel construction for strength and durability.
4. A series of steel reinforced trolleys that allow complete mobility, spanning any width and height.
5. Fold back for compact storage.
6. Optional shoot bolts plug into floor for stability.
6. Custom length and colors available on request.
Variety: small, medium and heavy expanded metal mesh. Expanded aluminum mesh, expanded platinum filtration mesh, expanded brass mesh, expanded copper mesh, expanded Stainless Steel Wire Mesh, expanded nickel mesh. Opening in the shape of diamond, hexagonal or special shape.
Product process:
Punching→ Straightening → cutting → welding → galvanizing → PVC coated → packing → loading
Application: Used with concrete in buildings and construction, maintenance of equipments, making of arts and crafts, covering screen for first class sound case. Also fencing for super highway, studio, highway. Heavy expanded metal can be used as step mesh of oil tanks, working platform, corridor and walking road for heavy model equipment, boiler, petroleum and mine well, automobile vehicles, big ships. Also serve as reinforcing bar in construction, railway and bridges. widely used in the core of filter, medicine,
filtering, breeding, battery, mechanical protecting, making the crafts, the meshes for the high-grade sound box, decoration, the seating for children, baskets, etc.
| Specification of Expanded Metal Mesh | ||||||
| Sheet Thickness | Opening in Width mm | Opening in Length mm | Stem | Roll Width mm | Roll Length mm | Weight kg/m2 |
| 0.5 | 2.5 | 4.5 | 0.5 | 0.5 | 1 | 1.8 |
| 0.5 | 10 | 25 | 0.5 | 0.6 | 2 | 0.73 |
| 0.6 | 10 | 25 | 1 | 0.6 | 2 | 1 |
| 0.8 | 10 | 25 | 1 | 0.6 | 2 | 1.25 |
| 1 | 10 | 25 | 1.1 | 0.6 | 2 | 1.77 |
| 1 | 15 | 40 | 1.5 | 2 | 4 | 1.85 |
| 1.2 | 10 | 25 | 1.1 | 2 | 4 | 2.21 |
| 1.2 | 15 | 40 | 1.5 | 2 | 4 | 2.3 |
| 1.5 | 15 | 40 | 1.5 | 1.8 | 4 | 2.77 |
| 1.5 | 23 | 60 | 2.6 | 2 | 3.6 | 2.77 |
| 2 | 18 | 50 | 2.1 | 2 | 4 | 3.69 |
| 2 | 22 | 60 | 2.6 | 2 | 4 | 3.69 |
| 3 | 40 | 80 | 3.8 | 2 | 4 | 5.00 |
| 4 | 50 | 100 | 4 | 2 | 2 | 11.15 |
| 4.5 | 50 | 100 | 5 | 2 | 2.7 | 11.15 |
| 5 | 50 | 100 | 5 | 1.4 | 2.6 | 12.39 |
| 6 | 50 | 100 | 6 | 2 | 2.5 | 17.35 |
| 8 | 50 | 100 | 8 | 2 | 2.1 | 28.26 |
