- Place of Origin:Hebei China (Mainland)
- Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
- Price:US $12.5 – 27.5 / Set
- Price Valid Time:7 days
- Company Certificate:ISO 9001：2008,CE,SGS
- Quality Inspection:ISO 9001：2008,CE,SGS
- HS Code:7314490000
- Brand Name:DeChengli
- Type:Wire Mesh Fence
- Material:Electro galvanized iron wire,hot-dipped galvanized iron wire,PVC coated wire
- Means of Transport:by sea
- Delivery Date:within 20 days
- Specification:panel width:2.2m,2.5m,3.0m,etc.
- Applications:used for prevention for road, highway, railway, garden, airport, residential district,etc.
- Hole Shape:—
- Mesh:—
- Dia:—
- Packaging Detail:Wrapped with plastic film outside with high quality metal or wooden pallet. In bulk,nude packing or as customers’ requirements.
- Delivery Detail:within 30 days after formal order
Material: The main materials of welded wire mesh fence are low carbon steel wire, low carbon steel galvanized wire and low carbon steel PVC coated steel wire etc.
Productive Process:
>> Fence Panel Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds/Curves Bending → Electric Galvanizing/Hot-dipped Galvanizing → Parkerizing → PVC Coating /Spraying → Packing → Loading
>> Fence Post Process: Raw Material → Cutting → Hole Drilling → Electro Galvanizing/Hot-dipped Galvanizing → Sandblasting → PVC Coating/Spraying → Packing → Loading
Type:electric galvanized,hot-dip galvanized,PVC spraying and PVC coating.
Surface treatment:Forms of corrosion resistance include electric galvanizing, and, PVC spraying and PVC coating.Good corrosion resistance, anti-aging, nice appearance, easy and quick installation.
Uses: mainly used in highway and railway bridges on both sides of the protection zone; airports, ports, terminals security; municipal building in the park, lawn, zoo, pool Lake, roads, and residential isolation and protection; guesthouses, hotels, supermarkets, entertainment protective and decorative.
| Fence Panel | ||||
| Panel height | Panel Length | Wire Diameter | Mesh Size | Folds No. |
| 1.03m | 2.0m
2.5m |
3.0mm/4.0mm
3.85mm/4.0mm 4.0mm/5.0mm 4.85mm/5.0mm 5.0mm/6.0mm 5.85mm/6.0mm |
50*200mm
50*150mm 50*100mm 75*150mm |
2 |
| 1.23m | 2 | |||
| 1.5m | 2/3 | |||
| 1.53m | 2/3 | |||
| 1.7m | 3 | |||
| 1.73m | 3 | |||
| 1.8m | 3 | |||
| 1.93m | 3 | |||
| 2.0m | 4 | |||
| 2.03m | 4 | |||
| 2.4m | 4 | |||
| Fence Post | ||
| Post Style | Post Size | Post height |
| Rectangle post | 40*60*1.2mm | 1.63m 1.83m 2.1m 2.13m 2.2m 2.23m 2.4m 2.53m 2.6m 2.63m |
| 40*60*1.5mm | ||
| 40*60*2mm | ||
| Square Post | 40*40*1.2mm | |
| 40*40*1.5mm | ||
| 60*60*2mm | ||
| 60*60*2.5mm | ||
| Peach post | 50*70mm | |
| 70*100mm | ||
| Round post | 38mm*1.2mm | |
| 40*1.5mm | ||
| 42*1.5mm | ||
| 48*2mm | ||

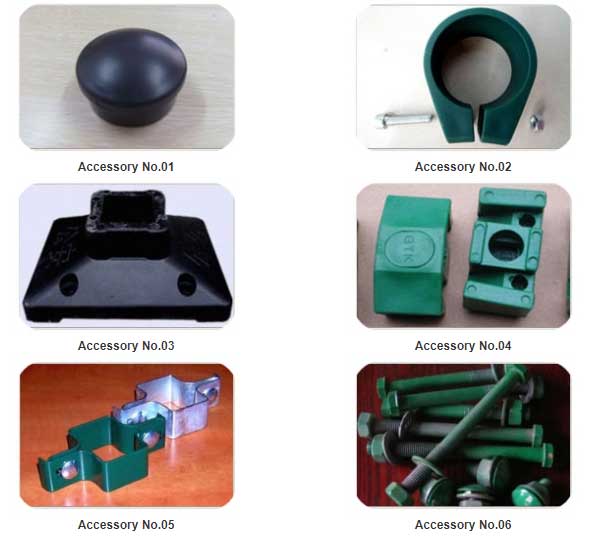

Accesssories

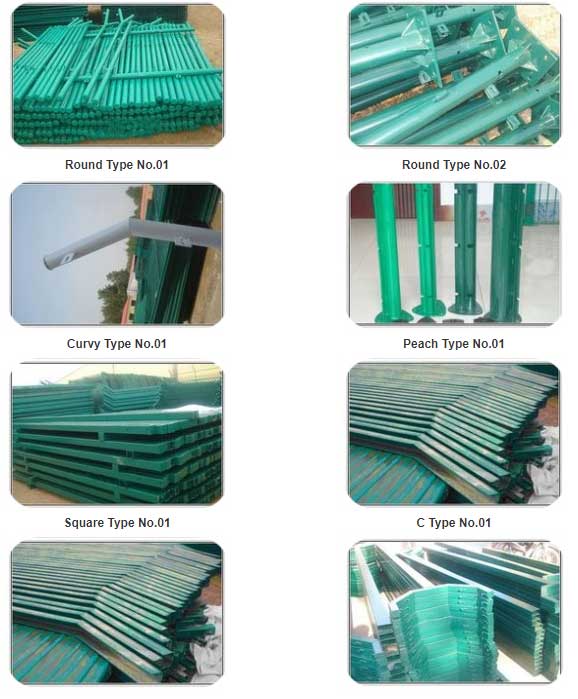

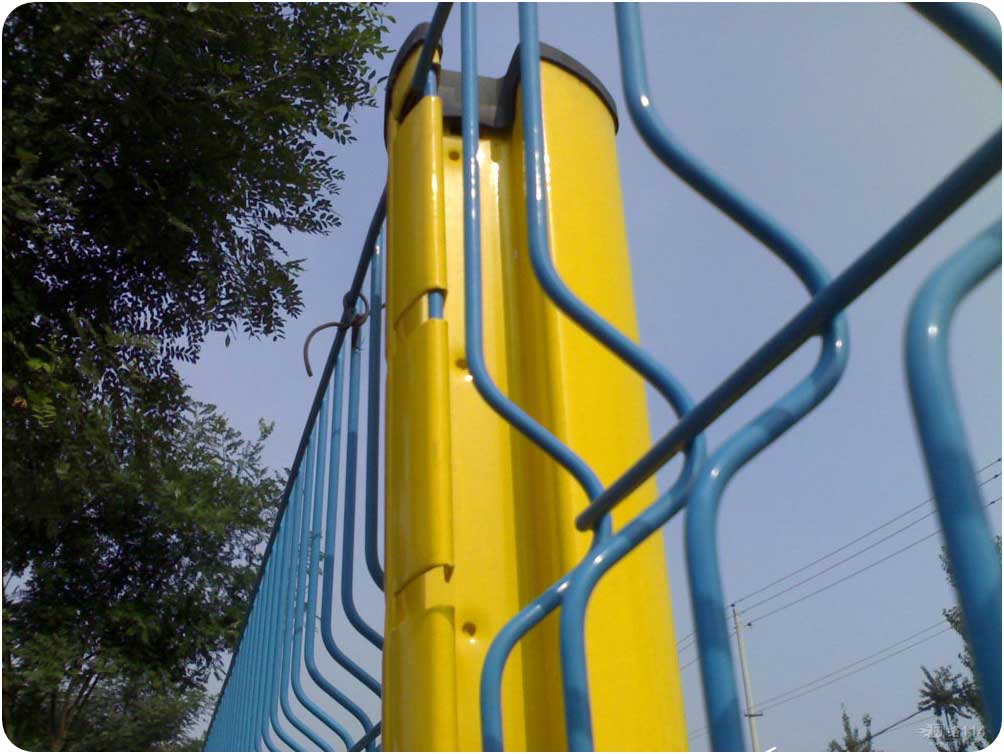

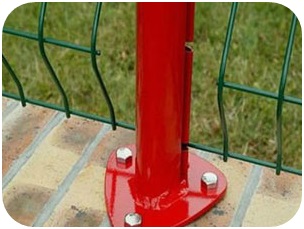

Various Fence Posts
Other Accessories
