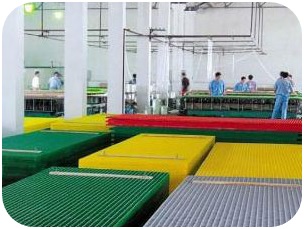

Fiberglass Grating

Minimum Order Quantity: 10 Ton/Tons
Supply Ability:800 Ton/Tons per Month
Payment Terms:L/C,T/T,Western Union

  • Place of Origin:Hebei China (Mainland)
  • Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
  • Price:US $1,200 – 1,500 / Ton
  • Price Valid Time:7 days
  • Company Certificate:ISO 9001:2008,CE,SGS
  • Quality Inspection:ISO 9001:2008,CE,SGS
  • HS Code:7314490000
  • Brand Name:DeChengli
  • Type:Steel Grating
  • Material:S275JR,SS304,Mild steel & Low carbon steel,etc.
  • Means of Transport:by sea
  • Delivery Date:within 20 days
  • Specification:Surface Treatment:Black,hot dip galvanized,painted,spray coating
  • Applications:Steel plateform,steel structure,trench,etc.

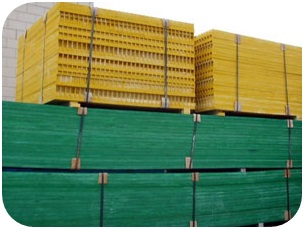

  • Packaging Detail:Normally packed in piling up ways with two pieces of square wood on both bottom sides. Also can be packed by customers’ requirements.
  • Delivery Detail:within 30 days after formal order

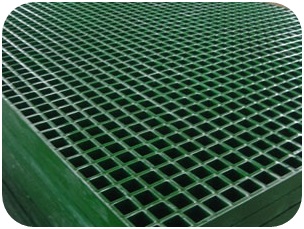

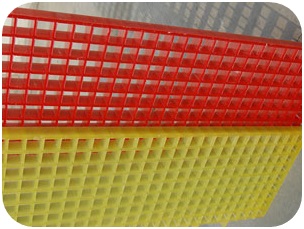

Material:fiberglass industrial plastic flooring is made of thoroughly wetted continuous glass strand fibers and a special resin that provides maximum corrosion resistance to chemicals.

Excellent:
(1).Safety:FRP is recommended when corrosion protection and safety are your goal.
(2).Stability:Expansion and contraction is 24% and 50% less than aluminum and steel, providing greater dimensional stability.
(3).Durability:Superior durability to Stainless Steel, Aluminum, and Galvanized Gratings, especially in highly corrosive environments.
(4).Strength:50%higher tensile strength than hot rolled steel and better impact resistance.

Surface Treatment:
Smooth surface grating,Concave surface grating, Microvoid grating, Sandy grating,Cover board gratin,Transparent grating.
a)Smooth surface and italic grid make it easy to clean.
b)Cross distributing loads equally to improve the bearing capacity.
c)Surface grooves prevent slipping, covered sand type is better in anti-slipping

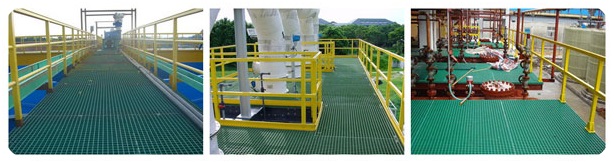

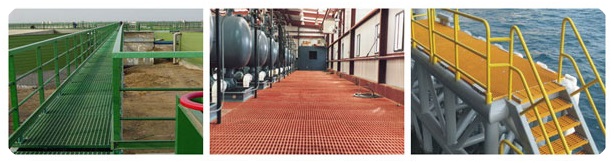

Application:
They are widely used and according to their dimension they may be used as supporting and structural components in anti-corrosion and insulating applications, such as anti-corrosion work platforms, supporting of electrical cabinets, door and window frames, and decorative parts.

Model No. Mesh Size (mm) Thickness (mm) Full Panel Size (mm) Open Area Net Weight (Kg/m2) Noted
WD-FG01 38*38 15 1262*3663 72 7.5
WD-FG02 50*50 15 1223*3663 65 6.5
WD-FG03 38*38 25 1223*3663 68.7 12.4
WD-FG04 100*25 25 1010*3010 65.7 12.4
WD-FG05 38*38 30 1223*4040 68.3 15.1
WD-FG06 19*19 30 1223*3663 39.6 21.5 mini mesh
WD-FG07 38*38 35 1223*3663 66.1 17.8
WD-FG08 38*38 38 1223*3663 66.1 19.3
WD-FG09 19*19 38 1223*3663 39.6 22.8 mini mesh
WD-FG10 40*40 40 1260*3690 69.6 19.3
WD-FG11 50*50 50 1223*3663 70.6 21.5



Maintenance:
1. Washing liquid can be used to clean the dust and dirties on the surface, no need of other maintenance measures.
2. Avoid direct connection with naked fire and high temperature, such as electric welding.
3. Avoid the drag and impact damage from any steel, steel sharp tools, and the painting pollution.
