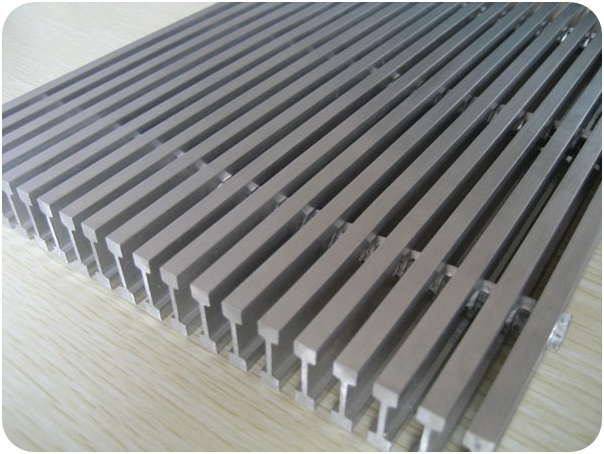

I Type Steel Grating

Minimum Order Quantity: 10 Ton/Tons
Supply Ability:800 Ton/Tons per Month
Payment Terms:L/C,T/T,Western Union

  • Place of Origin:Hebei China (Mainland)
  • Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
  • Price:US $1,200 – 1,500 / Ton
  • Price Valid Time:7 days
  • Company Certificate:ISO 9001:2008,CE,SGS
  • Quality Inspection:ISO 9001:2008,CE,SGS
  • HS Code:7314490000
  • Brand Name:DeChengli
  • Type:Steel Grating
  • Material:S275JR,SS304,Mild steel & Low carbon steel,etc.
  • Means of Transport:by sea
  • Delivery Date:within 20 days
  • Specification:Surface Treatment:Black,hot dip galvanized,painted,spray coating
  • Applications:Steel plateform,steel structure,trench,etc.
  • Packaging Detail:Normally packed in piling up ways with two pieces of square wood on both bottom sides. Also can be packed by customers’ requirements.
  • Delivery Detail:within 30 days after formal order

Material:Q235 , or other equivalent material.

Processing technic:

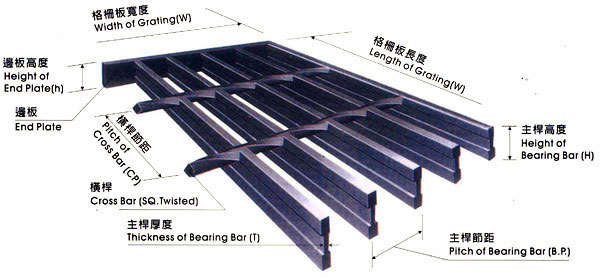

Steel grating is made by bearing bar and cross bar according to the flat-steel weft arrangement, in high-pressure spacing on resistance welder welded by cutting, incision, opening, overlock process such as processing and into customer requirements finished products.

Features:

Intensity,light structure: strong grid bonding structure makes it with high load, the structure characteristics, facilitate hoisting light; Beautiful appearance, durable: hot-dip galvanized surface treatment make it fairly good corrosion resistance, the surface luster beautiful; Ventilation, lighting, heat dissipation, explosion-proof, prevent slippery properties is good; Deposition prevention dirt.

I Type Steel Grating Standard

Country Steel grating standard Steel standard Galvanizing standard
China YB/T 4001.1-2007 GB700-88 GB/T13912-2002
USA ANSI/NAAMM(MBG531) ASTM(A36) ASTM(A123)
U.K. BS4592-1995 BS4360(43A) BS729
Australia AS1657-1992 AS3679 AS1650

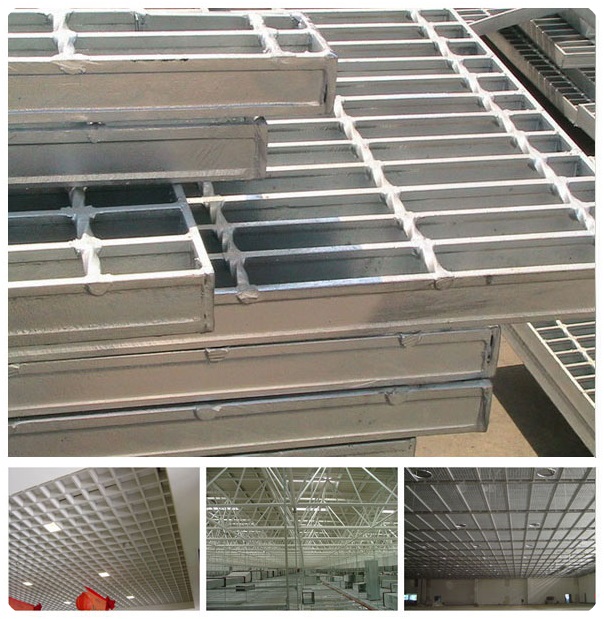

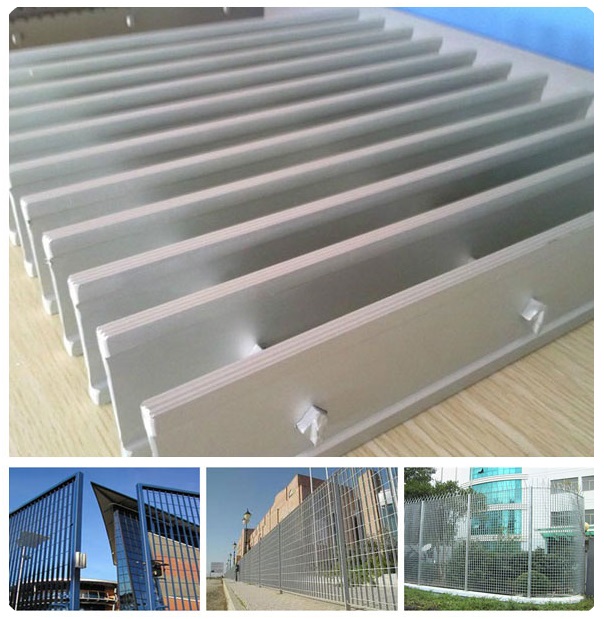

Uses:
* Flooring
* Stair treads
* Sun shades
* Drain covers
* Security screens
* Manhole covers
* Mezzanine flooring
* Earth mats
* Shelving
* Stanchions (hand rails)

Package:Pallets in containers packed by steel strap and worthy seashipping, or according to the customers’requirements.
