Steel Grating Platform

Minimum Order Quantity: 10 Ton/Tons
Supply Ability:800 Ton/Tons per Month
Payment Terms:L/C,T/T,Western Union

  • Place of Origin:Hebei China (Mainland)
  • Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
  • Price:US $1,200 – 1,500 / Ton
  • Price Valid Time:7 days|ISO 9001:2008,CE,SGS
  • Company Certificate:ISO 9001:2008,CE,SGS
  • Quality Inspection:7314490000
  • HS Code:DeChengli
  • Brand Name:Steel Grating
  • Type:S275JR,SS304,Mild steel & Low carbon steel,etc.
  • Material:by sea
  • Means of Transport:within 20 days
  • Delivery Date:Surface Treatment:Black,hot dip galvanized,painted,spray coating
  • Specification:Steel plateform,steel structure,trench,etc.
  • Applications:—
  • Packaging Detail:within 30 days after formal order
  • Delivery Detail:{$product_Parameters25}

Material:
Mild Steel / Low Carbon Steel or Stainless Steel,and so on.

Tolerance:
The allowed deviation of length is +0/-5mm, while the allowed deviation of width is +/-5 mm.
The non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar.
Cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar should not surpass the end surfaces of two sides of grating 2mm.

Finish:
Stainless steel grating will have a mill finish, since after the welding finish the welded area produces a discoloration on the surface, only after Electro-polishing the discoloration can be removed.

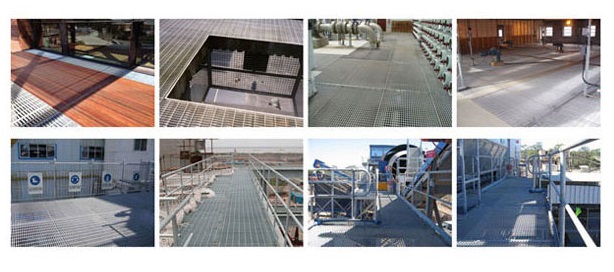

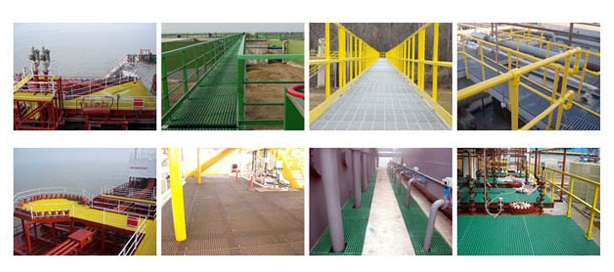

Application: It is widely used for platform, aisle, trestle, drain cover, manhole cover, steel ladder, fence, and guardrail in the fields including petrochemical, power station, sewage treatment plant, mechanical manufacture, mechanical and electrical equipment, paper mill, cement plant, pharmacy, food processing, municipal engineering, environmental engineering, etc.

Steel Grating Standardizations:

Countries National Standards for Grating Materials Galvanizing Standards
China YB/T 4001.1-2007 GB 700-88 GB/T13912-2002
America ANSI/NAAMM(MBG531-00) ASTM(A36) ASTM(A123)
Britain BS4592-1995 BS4360(43A ) BS729
Australia AS1657-1992 AS3679 AS1650

Features of Stainless Steel Grating :
1) Stainless steel grating is the most chemically resistant product. it can be forged into different styles the space gap can be adjusted according to needs.
2) Stainless steel grating is easy to clean; the most effective cleaning method is use a stem cleaner or power washer. Debris can be removed with stiff bristle brush, organic based stains, such as grease or oil.
3) Stainless grating is available in stock panels or fabricated to meet the project specifications.
4) Stainless grating can be used in food processing, such as poultry processing, beverages plants, sugar plants, etc.

Packing and shipping:
Normally packed in pilling up ways with two pieces of square wood on both upper and bottom sides.there are four or six pieces of M10 long bolt penetrating the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane.
