| Quantity: | |
|---|---|
Place of Origin:Hebei China (Mainland)
Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
Price:US $599.6 – 998.5 / Ton
Price Valid Time:7 days
Company Certificate:ISO 9001：2008,CE,SGS
Quality Inspection:ISO 9001：2008,CE,SGS
HS Code:7314490000
Brand Name:DeChengli

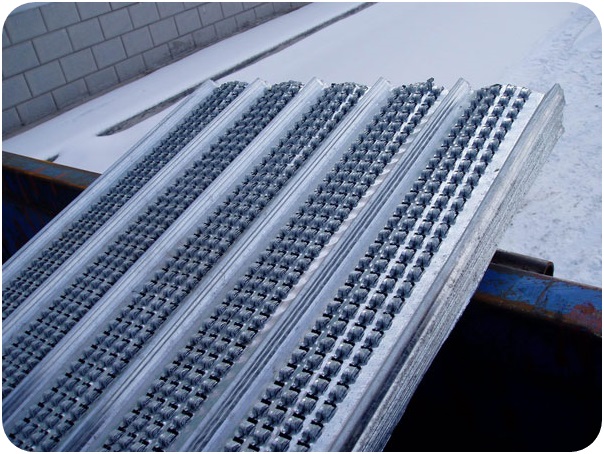

Type:HY-Lath

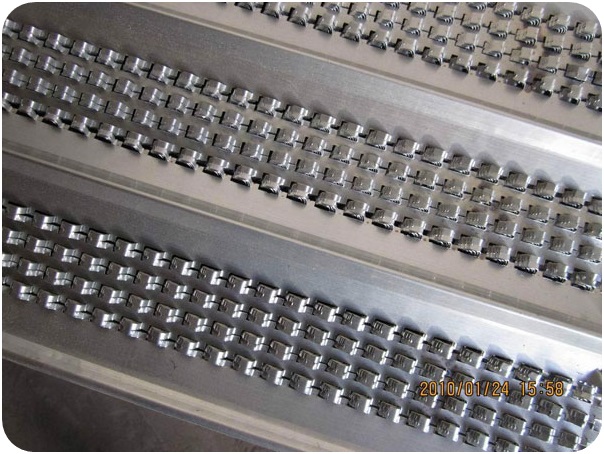

Material:Galvanized Iron Wire,Low-Carbon Iron
Means of Transport:by sea
Delivery Date:within 20 days
Specification:C Content (%):standard level
Applications:Square,Main road,pavement,street
Packaging Detail:In coils by bulk, by carton or pallet according to custmoers request
Delivery Detail:within 30 days after formal order
Materials:Hot dipped galvanized sheet, elecro galvanized sheet, cold-rolled sheet.
Features:
1,Good Mechanical performance with small lateral pressure of TX-02 hy-rid
2,Directly observed pouring process of TX-02 hy-rid
3,Light weight, convenient transportation and installation of TX-02 hy-rid
4,Optimization of process, increase shear interface of TX-02 hy-rid
5,Easy to wear muscle and continuous binding reinforced of TX-02 hy-rid
6,To adapt to the section pouring concrete, the construction of civilization of TX-02 hy-rid
7,Easy to cup joint and cut of TX-02 hy-rid
Application:
Widely used as a plaster backing on ceilings, walls and stud partitions. Rib Lath is also ideal for refurbishing damaged or aged masonry walls when a key for rendering is not certain due to disintegration or softening of the wall face.
HY-Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
Installation:
HY-Lath is ideal for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face.
Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together.
Stainless steel fixings should be used at sufficient intervals to hold the lath firmly in position.
Install Rib Lath with U staple | Install rib lath with rope | Install rib Lath with nail |
Model | Thickness | SwxLw | Rib height | Rib distance | Kg/m2 | Width of piece |
RLAG3011040 | 0.30 | 3.5×13 | 6 | 75 | 1.27 | 750 |
RLAG3511040 | 0.35 | 3.5×13 | 6 | 75 | 1.49 | 750 |
RLAG4011040 | 0.40 | 3.5×13 | 6 | 75 | 1.70 | 750 |
RLAG5011040 | 0.50 | 3.5×13 | 6 | 75 | 2.12 | 750 |
Material | Shootsize | Weight | Pcs/bundle | Yerds/hundle | Yards/pallet |
Galv.stee | 27″X96″ | 2.75 | 10 | 20 | 1000 |
Galv.stee | 27″X96″ | 3.4 | 10 | 20 | 1000 |
Model | Thickness | SwxLw | Rib height | Rib distance | Kg/m2 | Width of piece |
RLAG309060 | 0.30 | 7.5×4 | 5 | 75 | 1.19 | 600 |
RLAG359060 | 0.35 | 7.5×4 | 5 | 75 | 1.39 | 600 |
RLAG409060 | 0.40 | 7.5×4 | 5 | 75 | 1.59 | 600 |
RLAG459060 | 0.45 | 7.5×4 | 5 | 75 | 1.79 | 600 |
RLAG509060 | 0.50 | 7.5×4 | 5 | 75 | 1.99 | 600 |
Model | Thickness | SwxLw | Rib height | Rib distance | Kg/m2 | Width of piece |
RLAG3011040 | 0.30 | 3.5×13 | 6 | 75 | 1.27 | 750 |
RLAG3511040 | 0.35 | 3.5×13 | 6 | 75 | 1.49 | 750 |
RLAG4011040 | 0.40 | 3.5×13 | 6 | 75 | 1.70 | 750 |
RLAG5011040 | 0.50 | 3.5×13 | 6 | 75 | 2.12 | 750 |
Model | Thickness | SwxLw | Rib height | Rib distance | Kg/m2 | Width of piece |
RLAG305080 | 0.30 | 16X11 | 8 | 150 | 085 | 600 |
RLAG355080 | 0.35 | 16X11 | 8 | 150 | 1.00 | 600 |
RLAG405080 | 0.40 | 16X11 | 8 | 150 | 1.14 | 600 |
RLAG455080 | 0.45 | 16X11 | 8 | 150 | 1.28 | 600 |
RLAG505080 | 0.50 | 16X11 | 8 | 150 | 1.43 | 600 |
Place of Origin:Hebei China (Mainland)
Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
Price:US $599.6 – 998.5 / Ton
Price Valid Time:7 days
Company Certificate:ISO 9001：2008,CE,SGS
Quality Inspection:ISO 9001：2008,CE,SGS
HS Code:7314490000
Brand Name:DeChengli
Type:HY-Lath
Material:Galvanized Iron Wire,Low-Carbon Iron
Means of Transport:by sea
Delivery Date:within 20 days
Specification:C Content (%):standard level
Applications:Square,Main road,pavement,street
Packaging Detail:In coils by bulk, by carton or pallet according to custmoers request
Delivery Detail:within 30 days after formal order
Materials:Hot dipped galvanized sheet, elecro galvanized sheet, cold-rolled sheet.
Features:
1,Good Mechanical performance with small lateral pressure of TX-02 hy-rid
2,Directly observed pouring process of TX-02 hy-rid
3,Light weight, convenient transportation and installation of TX-02 hy-rid
4,Optimization of process, increase shear interface of TX-02 hy-rid
5,Easy to wear muscle and continuous binding reinforced of TX-02 hy-rid
6,To adapt to the section pouring concrete, the construction of civilization of TX-02 hy-rid
7,Easy to cup joint and cut of TX-02 hy-rid
Application:
Widely used as a plaster backing on ceilings, walls and stud partitions. Rib Lath is also ideal for refurbishing damaged or aged masonry walls when a key for rendering is not certain due to disintegration or softening of the wall face.
HY-Lath is extensively used in construction of civil building, industrial building, construction under the water like banks, ponds, infrastructure engineering as well as municipal works. Rib Lath works well with other construction materials to save both cost and energy.
Installation:
HY-Lath is ideal for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face.
Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together.
Stainless steel fixings should be used at sufficient intervals to hold the lath firmly in position.
Install Rib Lath with U staple | Install rib lath with rope | Install rib Lath with nail |
Model | Thickness | SwxLw | Rib height | Rib distance | Kg/m2 | Width of piece |
RLAG3011040 | 0.30 | 3.5×13 | 6 | 75 | 1.27 | 750 |
RLAG3511040 | 0.35 | 3.5×13 | 6 | 75 | 1.49 | 750 |
RLAG4011040 | 0.40 | 3.5×13 | 6 | 75 | 1.70 | 750 |
RLAG5011040 | 0.50 | 3.5×13 | 6 | 75 | 2.12 | 750 |
Material | Shootsize | Weight | Pcs/bundle | Yerds/hundle | Yards/pallet |
Galv.stee | 27″X96″ | 2.75 | 10 | 20 | 1000 |
Galv.stee | 27″X96″ | 3.4 | 10 | 20 | 1000 |
Model | Thickness | SwxLw | Rib height | Rib distance | Kg/m2 | Width of piece |
RLAG309060 | 0.30 | 7.5×4 | 5 | 75 | 1.19 | 600 |
RLAG359060 | 0.35 | 7.5×4 | 5 | 75 | 1.39 | 600 |
RLAG409060 | 0.40 | 7.5×4 | 5 | 75 | 1.59 | 600 |
RLAG459060 | 0.45 | 7.5×4 | 5 | 75 | 1.79 | 600 |
RLAG509060 | 0.50 | 7.5×4 | 5 | 75 | 1.99 | 600 |
Model | Thickness | SwxLw | Rib height | Rib distance | Kg/m2 | Width of piece |
RLAG3011040 | 0.30 | 3.5×13 | 6 | 75 | 1.27 | 750 |
RLAG3511040 | 0.35 | 3.5×13 | 6 | 75 | 1.49 | 750 |
RLAG4011040 | 0.40 | 3.5×13 | 6 | 75 | 1.70 | 750 |
RLAG5011040 | 0.50 | 3.5×13 | 6 | 75 | 2.12 | 750 |
Model | Thickness | SwxLw | Rib height | Rib distance | Kg/m2 | Width of piece |
RLAG305080 | 0.30 | 16X11 | 8 | 150 | 085 | 600 |
RLAG355080 | 0.35 | 16X11 | 8 | 150 | 1.00 | 600 |
RLAG405080 | 0.40 | 16X11 | 8 | 150 | 1.14 | 600 |
RLAG455080 | 0.45 | 16X11 | 8 | 150 | 1.28 | 600 |
RLAG505080 | 0.50 | 16X11 | 8 | 150 | 1.43 | 600 |
