| Quantity: | |
|---|---|
Place of Origin:Hebei China (Mainland)
Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
Price:US $1,200 – 1,500 / Ton
Price Valid Time:7 days|ISO 9001：2008,CE,SGS
Company Certificate:ISO 9001：2008,CE,SGS
Quality Inspection:7314490000
HS Code:DeChengli
Brand Name:Steel Grating
Type:S275JR,SS304,Mild steel & Low carbon steel,etc.
Material:by sea
Means of Transport:within 20 days
Delivery Date:Surface Treatment:Black,hot dip galvanized,painted,spray coating
Specification:Steel plateform,steel structure,trench,etc.
Applications:—
Packaging Detail:within 30 days after formal order
Delivery Detail:{$product_Parameters25}
Material:
Mild Steel / Low Carbon Steel or Stainless Steel,and so on.
Tolerance:
The allowed deviation of length is +0/-5mm, while the allowed deviation of width is +/-5 mm.
The non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar.
Cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar should not surpass the end surfaces of two sides of grating 2mm.
Finish:
Stainless steel grating will have a mill finish, since after the welding finish the welded area produces a discoloration on the surface, only after Electro-polishing the discoloration can be removed.

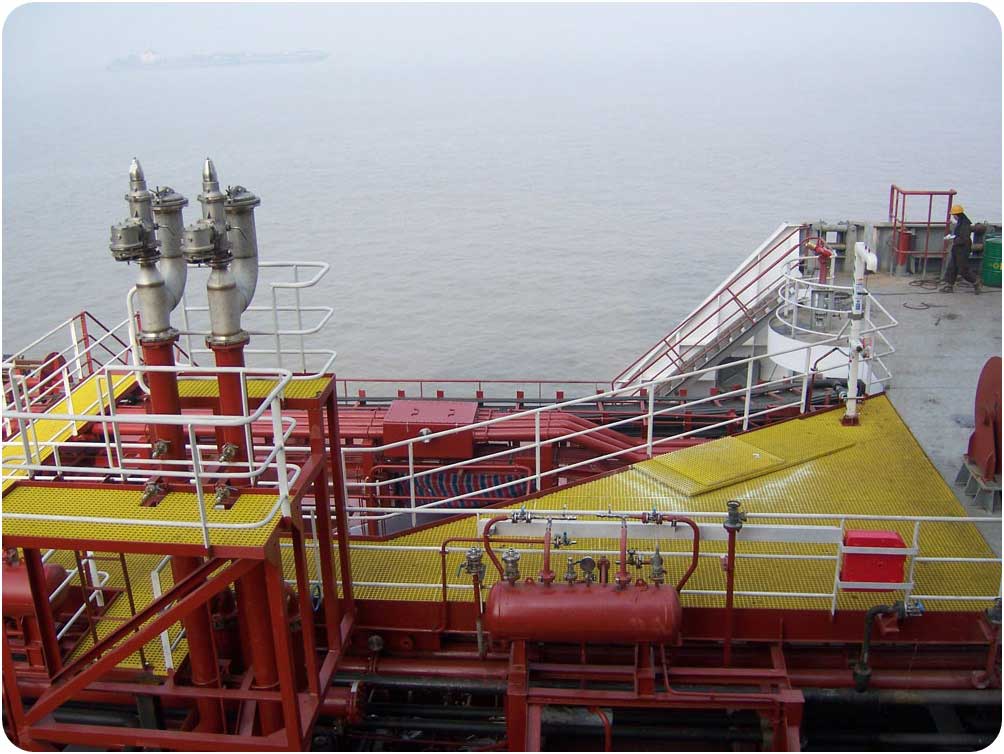

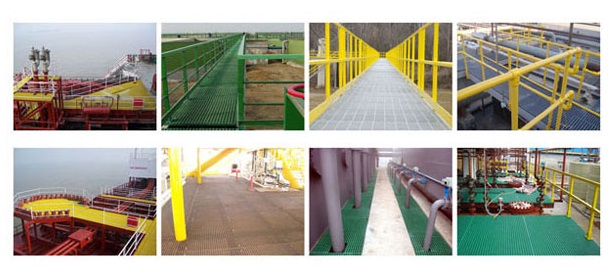

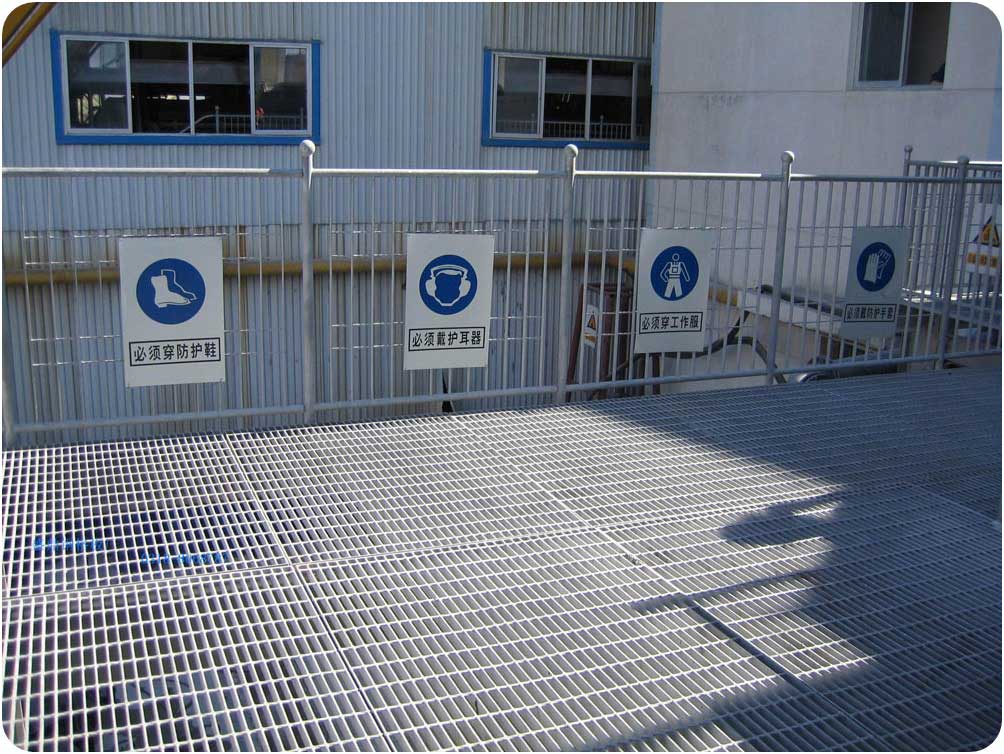

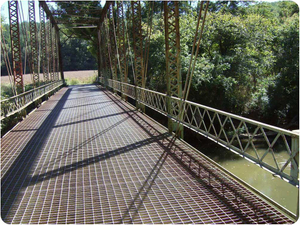

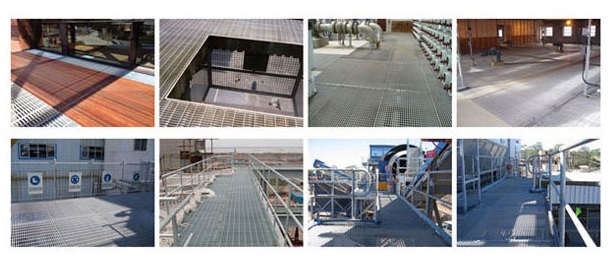

Application: It is widely used for platform, aisle, trestle, drain cover, manhole cover, steel ladder, fence, and guardrail in the fields including petrochemical, power station, sewage treatment plant, mechanical manufacture, mechanical and electrical equipment, paper mill, cement plant, pharmacy, food processing, municipal engineering, environmental engineering, etc.
Steel Grating Standardizations:
| Countries | National Standards for Grating | Materials | Galvanizing Standards |
| China | YB/T 4001.1-2007 | GB 700-88 | GB/T13912-2002 |
| America | ANSI/NAAMM(MBG531-00) | ASTM(A36) | ASTM(A123) |
| Britain | BS4592-1995 | BS4360(43A ) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
Features of Stainless Steel Grating :
1) Stainless steel grating is the most chemically resistant product. it can be forged into different styles the space gap can be adjusted according to needs.
2) Stainless steel grating is easy to clean; the most effective cleaning method is use a stem cleaner or power washer. Debris can be removed with stiff bristle brush, organic based stains, such as grease or oil.
3) Stainless grating is available in stock panels or fabricated to meet the project specifications.
4) Stainless grating can be used in food processing, such as poultry processing, beverages plants, sugar plants, etc.
Packing and shipping:
Normally packed in pilling up ways with two pieces of square wood on both upper and bottom sides.there are four or six pieces of M10 long bolt penetrating the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane.
Place of Origin:Hebei China (Mainland)
Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
Price:US $1,200 – 1,500 / Ton
Price Valid Time:7 days|ISO 9001：2008,CE,SGS
Company Certificate:ISO 9001：2008,CE,SGS
Quality Inspection:7314490000
HS Code:DeChengli
Brand Name:Steel Grating
Type:S275JR,SS304,Mild steel & Low carbon steel,etc.
Material:by sea
Means of Transport:within 20 days
Delivery Date:Surface Treatment:Black,hot dip galvanized,painted,spray coating
Specification:Steel plateform,steel structure,trench,etc.
Applications:—
Packaging Detail:within 30 days after formal order
Delivery Detail:{$product_Parameters25}
Material:
Mild Steel / Low Carbon Steel or Stainless Steel,and so on.
Tolerance:
The allowed deviation of length is +0/-5mm, while the allowed deviation of width is +/-5 mm.
The non-perpendicularity of bearing bar is allowed no more than 10% of width of bearing bar.
Cross bar surface should not surpass bearing bar surface 1mm, beginning & end of cross bar should not surpass the end surfaces of two sides of grating 2mm.
Finish:
Stainless steel grating will have a mill finish, since after the welding finish the welded area produces a discoloration on the surface, only after Electro-polishing the discoloration can be removed.
Application: It is widely used for platform, aisle, trestle, drain cover, manhole cover, steel ladder, fence, and guardrail in the fields including petrochemical, power station, sewage treatment plant, mechanical manufacture, mechanical and electrical equipment, paper mill, cement plant, pharmacy, food processing, municipal engineering, environmental engineering, etc.
Steel Grating Standardizations:
| Countries | National Standards for Grating | Materials | Galvanizing Standards |
| China | YB/T 4001.1-2007 | GB 700-88 | GB/T13912-2002 |
| America | ANSI/NAAMM(MBG531-00) | ASTM(A36) | ASTM(A123) |
| Britain | BS4592-1995 | BS4360(43A ) | BS729 |
| Australia | AS1657-1992 | AS3679 | AS1650 |
Features of Stainless Steel Grating :
1) Stainless steel grating is the most chemically resistant product. it can be forged into different styles the space gap can be adjusted according to needs.
2) Stainless steel grating is easy to clean; the most effective cleaning method is use a stem cleaner or power washer. Debris can be removed with stiff bristle brush, organic based stains, such as grease or oil.
3) Stainless grating is available in stock panels or fabricated to meet the project specifications.
4) Stainless grating can be used in food processing, such as poultry processing, beverages plants, sugar plants, etc.
Packing and shipping:
Normally packed in pilling up ways with two pieces of square wood on both upper and bottom sides.there are four or six pieces of M10 long bolt penetrating the gratings and screwing together.it is suitable for loading and unloading by fork-lift and crane.
