Twin Wire Fence

Minimum Order Quantity: 30 Set/Sets
Supply Ability:500 Set/Sets per Day
Payment Terms:L/C,T/T,Western Union

Availability:

Quantity:



Inquire

Description

Place of Origin:Hebei China (Mainland)

Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia

Price:US $10 – 21 / Set

Price Valid Time:7 days

Company Certificate:ISO 9001：2008,CE,SGS|ISO 9001：2008,CE,SGS

Quality Inspection:7314490000

HS Code:DeChengli

Brand Name:Wire Mesh Fence

Type:Electro galvanized iron wire,hot-dipped galvanized iron wire,PVC coated wire

Material:by sea

Means of Transport:within 20 days

Delivery Date:Wire Gauge:2.2-6mm

Specification:used for prevention for road, highway, railway, garden, airport, residential district,etc.

Applications:—

Hole Shape:—

Mesh:—

Dia:—

Packaging Detail:within 30 days after formal order

Delivery Detail:{$product_Parameters25}

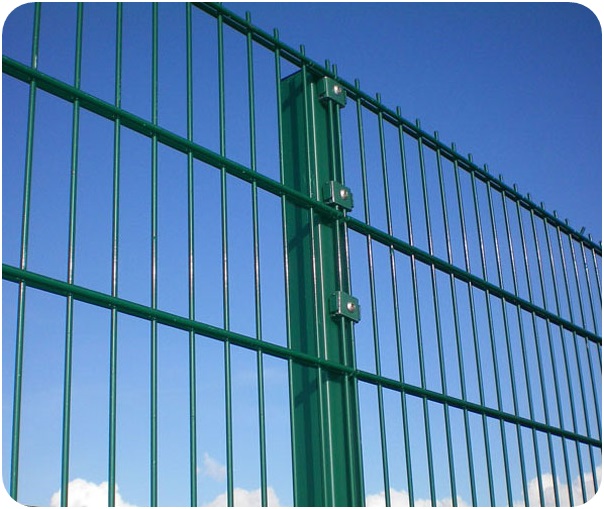

Twin Wire Fence is a rigid yet unobtrusive mesh fencing system. It is often used as a perimeter fence for industrial or commercial premises and sports pitches where a strong mesh fencing system is required.

Details:
>> Material:
Double wire fence uses high quality iron rod,low carbon steeland high quality steel as raw material
>> Fence size:
200mm*50mm*2.5m*height from 630mm–2430mm or available on request.
>> Wire diameter:
6mm+5mm+6mm,8mm+6mm+8mm.or as your requriments
>> Power coating:
the thickness of power coating is 100–120 microns usually.
>> Surface finish:
hot dipped galvanized;powder spraying coated;power dipped coated.

Twin-Wire-Fence

Surface Treatment: Electric Galvanized, Hot dipped galvanized , Plastic painting, PVC coated.

Twin-Wire-Fence2

Features:
* Strong and reliable security
* Versatile bottom option
* Attractive appearance
* Vandal resistant
* Cost effective
* Low maintenance ideal

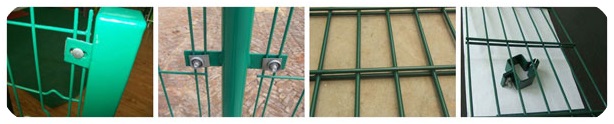

Twin-Wire-Fence3

Process:
Straightening and cutting short – Welding – Galvanized – Powder coated – Packaging – Shipping

Application:
At present,our Double Wire Fence has been applied to factories,building sites, vegetable greenhouses,cultivation bases,urban roads,flowers seperation,especially suitable for mountain, sloping lawn and curvature area, and applied widely in extensive areas because of its lower price.

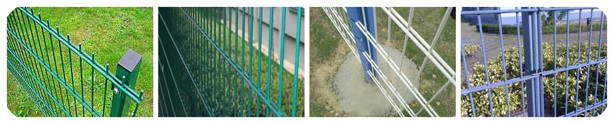

Twin-Wire-Fence4

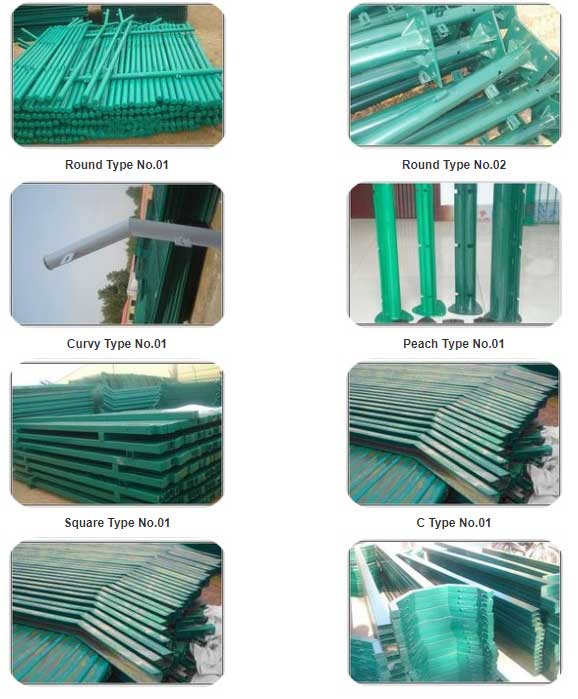

Posts:
1) Square Post (50*50mm, 60*60mm)
2) Rectangular Post (80*60*2.5mm, 120*60*3mm)
3) Peach post(70*100mm)

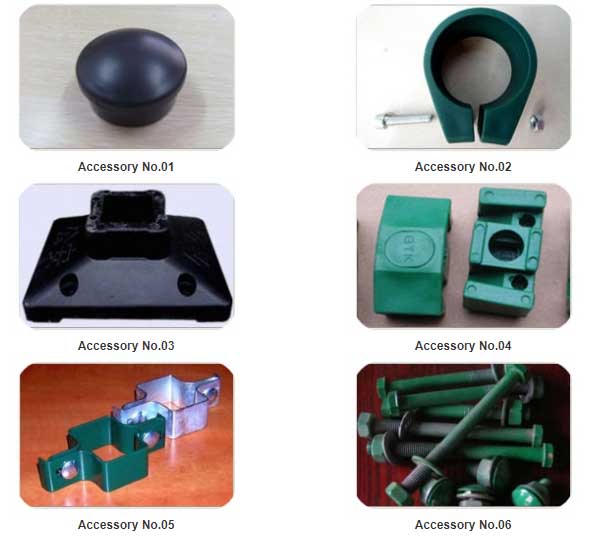

4) All the posts are provide with plastic caps or Roofing rainhat.
5) The finished surface usually is Galvanizing and Powder coating or alternatively.

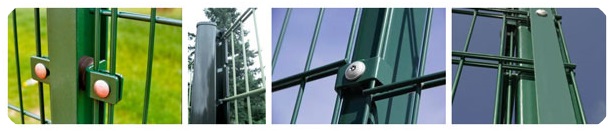

Twin-Wire-Fence5

Double Wire Fence System Specifications
Height x Width(mm)	Mesh Size(mm)	??Wire Diameter			Post Height(mm)
Height x Width(mm)	Mesh Size(mm)	Wire Dia(mm)	Wire?Dia(mm)	Wire Dia(mm)	Post Height(mm)
630X2500	50X200	8X2 + 6	6X2 + 5	6X2 + 4	1100
830X2500	50X200	8X2 + 6	6X2 + 5	6X2 + 4	1300
1030X2500	50X200	8X2 + 6	6X2 + 5	6X2 + 4	1500
1230X2500	50X200	8X2 + 6	6X2 + 5	6X2 + 4	1700
1430X2500	50X200	8X2 + 6	6X2 + 5	6X2 + 4	1900
1630X2500	50X200	8X2 + 6	6X2 + 5	6X2 + 4	2100
1830X2500	50X200	8X2 + 6	6X2 + 5	6X2 + 4	2400
2030X2500	50X200	8X2 + 6	6X2 + 5	6X2 + 4	2600
2230X2500	50X200	8X2 + 6	6X2 + 5	6X2 + 4	2800
2430X2500	50X200	8X2 + 6	6X2 + 5	6X2 + 4	3000
Other height and length are on request.
