Place of Origin:Hebei China (Mainland)
Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
Price:US $5 – 42 / Square Meter
Price Valid Time:7 days
Company Certificate:ISO 9001：2008,CE,SGS
Quality Inspection:ISO 9001：2008,CE,SGS
HS Code:7314490000
Brand Name:DeChengli
Type:Welded Wire Mesh
Material:Low carbon steel wire, stainless steel wire, PVC wire.
Means of Transport:by sea
Delivery Date:within 20 days
Specification:Opening: 50*150mm,50*200mm
Applications:used in industry and agriculture building, transportation and mining for all such purposes

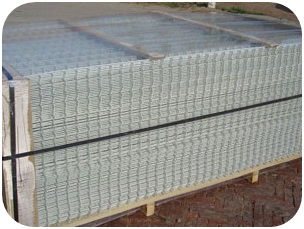

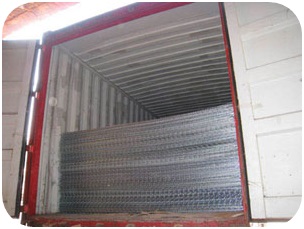

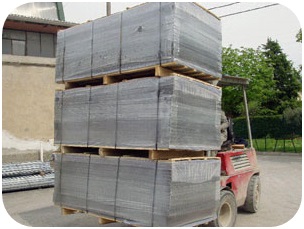

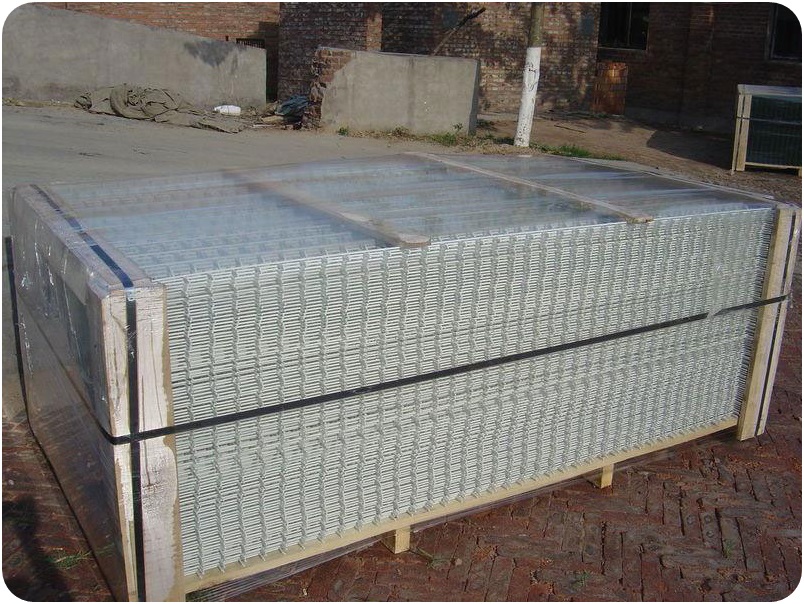

Packaging Detail:Wrapped with plastic film outside with high quality metal or wooden pallet. In bulk,nude packing or as customers’ requirements.
Material:

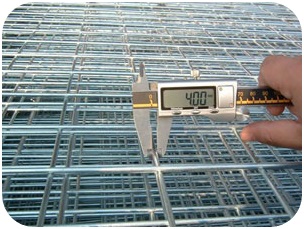

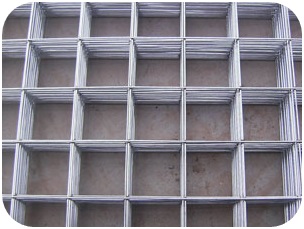

Welded wire mesh is welded form superior low carbon steel wire and then galvanized and PVC coated.It features smooth surface,uniform mesh,highstability and great corrosion resistance.
1-Electro galvanized mesh(welded before galvanized, welded after galvanized)
2-Hot-dipped galvanized mesh(welded before galvanized, welded after galvanized)

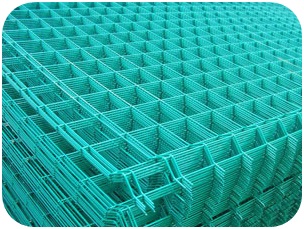

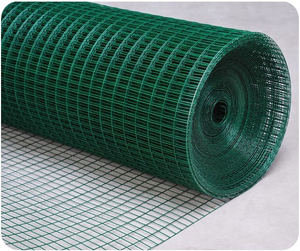

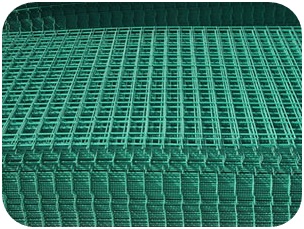

3-PVC coated mesh(wire dia. of PVC is about 0.4mm)
Galvanized welded mesh has a good resistance to corrosion. Zinc coating can reach 200g/m2.
 |  |
Characteristics:
Welded points and bright luster .The mesh doesn’t come loose even if cut in parts or being exerted force on parts .Compared with general iron wire ,the products are better in respects of anticorrosive and anti-rust.
 |  |
Process:
The wire fabric is made up of steel wires arranged in parallel fashion in two orthogonal directions, with the points of contact being welded between the wires by electrical welding process (spot welding) by welding machine.
 |  |
Application:
* Welded wire mesh is used in industry and agriculture building
* Transportation and mining for all such purposes as poultry houses
* Egg baskets
* Runway enclosures
* Draining rack
* Fruit drying screen
* Fence
 |  |
Specification List of Welded Wire Mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/4″ x 1/4″ | 6.4mm x 6.4mm | 22,23,24 |
3/8″ x 3/8″ | 10.6mm x 10.6mm | 19,20,21,22 |
1/2″ x 1/2″ | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8″ x 5/8″ | 16mm x 16mm | 18,19,20,21, |
3/4″ x 3/4″ | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1″ x 1/2″ | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2″ x 1-1/2″ | 38mm x 38mm | 14,15,16,17,18,19 |
1″ x 2″ | 25.4mm x 50.8mm | 14,15,16 |
2″ x 2″ | 50.8mm x 50.8mm | 12,13,14,15,16 |
Technical Note: | ||
PVC Coated Welded Mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/2″ x 1/2″ | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
3/4″ x 3/4″ | 19mm x 19mm | 16,17,18,19,20,21 |
1″ x 1″ | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
Technical Note: | ||
Galvanized Welded Wire Mesh | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
2″ x 3″ | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
3″ x 3″ | 75mm x 756mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2″ x 4″ | 50mm x 100mm | 2.11mm,2.5mm |
4″ x 4″ | 100mm x 100mm | 2.0mm,2.5mm |
Technical Note: | ||
