Place of Origin:Hebei China (Mainland)
Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
Price:US $5 – 42 / Square Meter
Price Valid Time:7 days
Company Certificate:ISO 9001：2008,CE,SGS
Quality Inspection:ISO 9001：2008,CE,SGS
HS Code:7314490000
Brand Name:DeChengli
Type:Welded Wire Mesh
Material:Low carbon steel wire, stainless steel wire, PVC wire.
Means of Transport:by sea
Delivery Date:within 20 days
Specification:Opening: 50*150mm,50*200mm
Applications:used in industry and agriculture building, transportation and mining for all such purposes
Packaging Detail:Wrapped with plastic film outside with high quality metal or wooden pallet. In bulk,nude packing or as customers’ requirements.
Delivery Detail:within 30 days after formal order
Specification:
1) Wire diameter: 8#-24#
2) Width: 0.5m-2.2m
3) Length: 12-45m
4) Mesh: 1/4″ 3/8″ 1/2″ 5/8″ 3/4″ 1″ 2″ 3″ 4″ 1″x1/2″ 2″x3″ 2″x4″
5) Type:in panel or in roll
Material:
High quality low carbon steel wire
Stainless steel wire
Classification:
1)Galvanized welded wire mesh:
* Electro galvanized welded wire mesh
* Hot-dipped galvanized welded wire mesh
2)PVC coated welded wire mesh
* PVC-dipped welded wire mesh
3)Special welded wire mesh
Surface treatment: elec-galvanized,hot-dip galvanized,pvc coated,powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant.Galvanized welded wire mesh is galvanized after welding.
Manufacture process: The galvanized electric wire mesh, welded after galvanized electric welded mesh and plastic coated mesh are made with high-quality iron wire by automatic equipment.
Weaving:Including galvanizing before or after welding.
Package:
The spare parts and control cabinet will be loaded in wooden box.
The main machine is nude packing.it need one 40′ GP container.

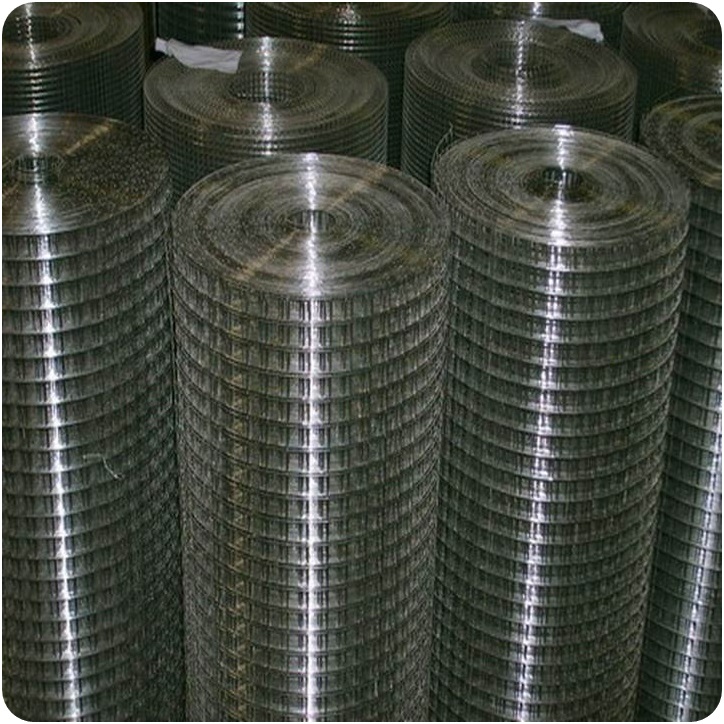

Hot Dipped Welded Wire Mesh
Specifications of?Welded Mesh Roll | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/4″ x 1/4″ | 6.4mm x 6.4mm | 22,23,24 |
3/8″ x 3/8″ | 10.6mm x 10.6mm | 19,20,21,22 |
1/2″ x 1/2″ | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8″ x 5/8″ | 16mm x 16mm | 18,19,20,21, |
3/4″ x 3/4″ | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1″ x 1/2″ | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2″ x 1-1/2″ | 38mm x 38mm | 14,15,16,17,18,19 |
1″ x 2″ | 25.4mm x 50.8mm | 14,15,16 |
2″ x 2″ | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1,Standard roll length: 30m;width: 0.5m to 2.4m 2,Special sizes available on request 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Specifications of?Galvanized Welded Mesh Roll | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
2″ x 3″ | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
3″ x 3″ | 75mm x 75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2″ x 4″ | 50mm x 100mm | 2.11mm,2.5mm |
4″ x 4″ | 100mm x 100mm | 2.0mm,2.5mm |
Technical Note: 1,Standard roll length:130m;width: 0.5m to 2.4m 2,Special sizes available on request 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||

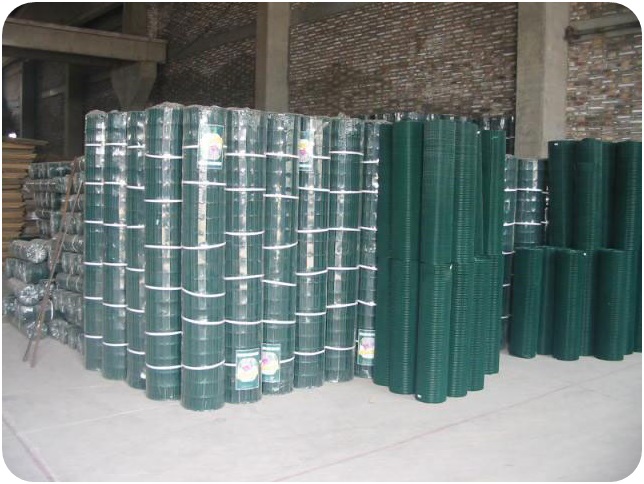

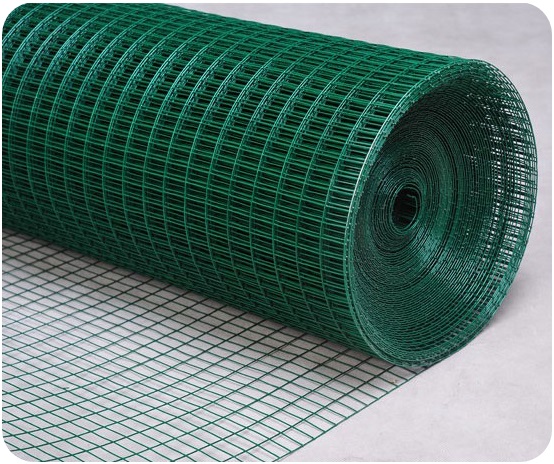

Specifications of PVC Coated Welded Mesh Roll | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/2″ x 1/2″ | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
3/4″ x 3/4″ | 19mm x 19mm | 16,17,18,19,20,21 |
1″ x 1″ | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
2″ x 2 “ | 50.8mm x 50.8mm | 15,16,17,18,19,20 |
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 2.4m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls.special packing available on request. | ||
Place of Origin:Hebei China (Mainland)
Main Export Market:America, Europe, Australia, Mid-east, Africa, Asia
Price:US $5 – 42 / Square Meter
Price Valid Time:7 days
Company Certificate:ISO 9001：2008,CE,SGS
Quality Inspection:ISO 9001：2008,CE,SGS
HS Code:7314490000
Brand Name:DeChengli
Type:Welded Wire Mesh
Material:Low carbon steel wire, stainless steel wire, PVC wire.
Means of Transport:by sea
Delivery Date:within 20 days
Specification:Opening: 50*150mm,50*200mm
Applications:used in industry and agriculture building, transportation and mining for all such purposes
Packaging Detail:Wrapped with plastic film outside with high quality metal or wooden pallet. In bulk,nude packing or as customers’ requirements.
Delivery Detail:within 30 days after formal order
Specification:
1) Wire diameter: 8#-24#
2) Width: 0.5m-2.2m
3) Length: 12-45m
4) Mesh: 1/4″ 3/8″ 1/2″ 5/8″ 3/4″ 1″ 2″ 3″ 4″ 1″x1/2″ 2″x3″ 2″x4″
5) Type:in panel or in roll
Material:
High quality low carbon steel wire
Stainless steel wire
Classification:
1)Galvanized welded wire mesh:
* Electro galvanized welded wire mesh
* Hot-dipped galvanized welded wire mesh
2)PVC coated welded wire mesh
* PVC-dipped welded wire mesh
3)Special welded wire mesh
Surface treatment: elec-galvanized,hot-dip galvanized,pvc coated,powder coating etc.
Feature: The structure of this kind of wire mesh is strong, lasting and rust-resistant.Galvanized welded wire mesh is galvanized after welding.
Manufacture process: The galvanized electric wire mesh, welded after galvanized electric welded mesh and plastic coated mesh are made with high-quality iron wire by automatic equipment.
Weaving:Including galvanizing before or after welding.
Package:
The spare parts and control cabinet will be loaded in wooden box.
The main machine is nude packing.it need one 40′ GP container.
Hot Dipped Welded Wire Mesh
Specifications of?Welded Mesh Roll | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/4″ x 1/4″ | 6.4mm x 6.4mm | 22,23,24 |
3/8″ x 3/8″ | 10.6mm x 10.6mm | 19,20,21,22 |
1/2″ x 1/2″ | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
5/8″ x 5/8″ | 16mm x 16mm | 18,19,20,21, |
3/4″ x 3/4″ | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
1″ x 1/2″ | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
1-1/2″ x 1-1/2″ | 38mm x 38mm | 14,15,16,17,18,19 |
1″ x 2″ | 25.4mm x 50.8mm | 14,15,16 |
2″ x 2″ | 50.8mm x 50.8mm | 12,13,14,15,16 |
| Technical Note: 1,Standard roll length: 30m;width: 0.5m to 2.4m 2,Special sizes available on request 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Specifications of?Galvanized Welded Mesh Roll | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
2″ x 3″ | 50mm x 75mm | 2.0mm,2.5mm,1.65mm |
3″ x 3″ | 75mm x 75mm | 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm |
2″ x 4″ | 50mm x 100mm | 2.11mm,2.5mm |
4″ x 4″ | 100mm x 100mm | 2.0mm,2.5mm |
Technical Note: 1,Standard roll length:130m;width: 0.5m to 2.4m 2,Special sizes available on request 3,Packing: in waterproof paper in rolls. Custom packing available at request. | ||
Specifications of PVC Coated Welded Mesh Roll | ||
Opening | Wire Diameter<BWG> | |
In inch | In metric unit(mm) | |
1/2″ x 1/2″ | 12.7mm x 12.7mm | 16,17,18,19,20,21 |
3/4″ x 3/4″ | 19mm x 19mm | 16,17,18,19,20,21 |
1″ x 1″ | 25.4mm x 25.4mm | 15,16,17,18,19,20 |
2″ x 2 “ | 50.8mm x 50.8mm | 15,16,17,18,19,20 |
Technical Note: 1,Standard roll length: 30m;width: 0.5m to 2.4m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls.special packing available on request. | ||
